Details:
1, Main Function

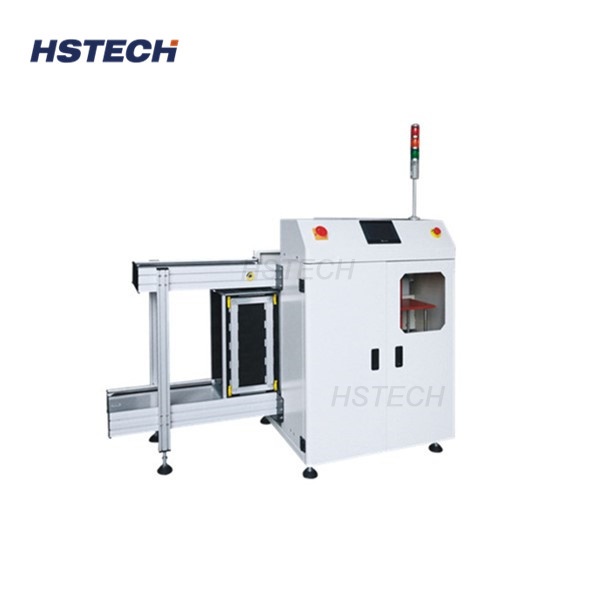

This machine is a combined machine, it designed as a vacuum loader and normal magazine loader both,it used for the source of the line, transport bare pcb or multi side board out from magazine to downstream machine,
2, Description
a, PLC control system
b, 3 magazines loading capability
c, Suction position is adjustable
d, Board storage devie with the fuction of evevator
e, designed gas circuit for transmit PCB smoothly and stably
f, with vacuum load and magazine load 2 models
g, Standard SMEMA
3,Specs
This machine is a combined machine, it designed as a vacuum loader and normal magazine loader both,it used for the source of the line, transport bare pcb or multi side board out from magazine to downstream machine,
2, Description
a, PLC control system
b, 3 magazines loading capability
c, Suction position is adjustable
d, Board storage devie with the fuction of evevator
e, designed gas circuit for transmit PCB smoothly and stably
f, with vacuum load and magazine load 2 models
g, Standard SMEMA
3,Specs
Type | SP-250 | SP-330 | SP-390 | SP-460 |
Power supply | AC100~230V 50/60Hz | AC100~230V 50/60Hz | AC100~230V 50/60Hz | AC100~230V 50/60Hz |
Air Supply | 5kgf/c M2 | 5kgf/c M2 | 5kgf/c M2 | 5kgf/c M2 |
PCB Size(mm) | 50*50~350*250 | 50*50~455*330 | 50*50~530*390 | 50*50~535*460 |
PCB Direction | left to right or right to left | / | / | / |
Magazine Size(mm) | 335*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
Step pitches(mm) | 10,20,30,40 | 10,20,30,40 | 10,20,30,40 | 10,20,30,40 |
Storage height(mm) | 200 | 200 | 200 | 200 |
Transport height(mm) | 900±20 | 900±20 | 900±20 | 900±20 |
Motor power | 300 | / | / | / |
Machine size(mm) | 1600*850*1200 | 2000*950*1200 | 2250*1050*1200 | 230*1050*1300 |
Weight(kg) | 140 | 180 | 220 | 280 |
Optional control panel | touch screen | / | / | / |
