Details:
1, Main Function

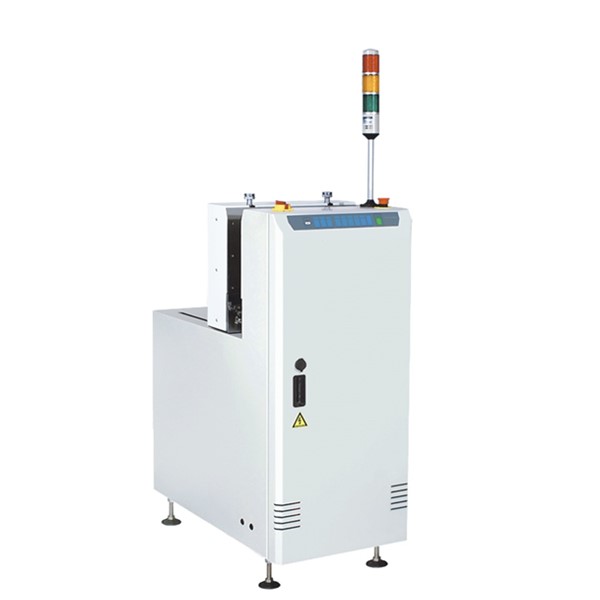

This unit is used for bare PCBs transport to SMT production line
2, Description
a, PLC control system
b, Pass through function
c, Compact design for space saving
d, PCB width adjustable by setting motor-drived lead screw rods
e, Width adjustable SMC cylinder(japanese brand)
f, Standard SMEMA
3, Specification
This unit is used for bare PCBs transport to SMT production line
2, Description
a, PLC control system
b, Pass through function
c, Compact design for space saving
d, PCB width adjustable by setting motor-drived lead screw rods
e, Width adjustable SMC cylinder(japanese brand)
f, Standard SMEMA
3, Specification
|
Model |
HS-DS400 |
HS-DS530 |
|
Size |
M |
XL |
|
Efficient PCB length |
50~400mm |
50~530mm |
|
Transport PCB width |
50~400mm |
50~500mm |
|
PCB thickness |
0.6~4.0mm |
0.6~4.0mm |
|
Machine dimension |
500*760*1200mm |
600*800*1200mm |
|
Weight |
135kg |
155kg |
